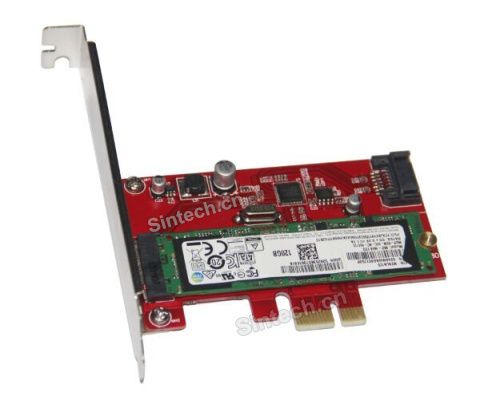

M.2 NGFF+SATA 3 HDD/SSD PCI-e express Controller adapter Card
Name: M.2 NGFF+SATA 3 HDD/SSD PCI-e express Controller adapter Card
Model: M2PCE1061
Detail:
Specification
1.Supports 1 Ports M.2 NGFF SATA SSD, 1 port SATA3 HDD.
2.Chipset: ASM 1061
3.Compliant with PCI-Experss Specification v2.0 and backward
4.compatible with PCI-Express 1.x
5.Compliant with Serial ATA Specification 3.0,2.0,1.0
6.Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
7.Supports Native Command Queuing (NCQ),
8.Compatible with SATA 6G, 3G and 1.5G Hard Drives
9.support bootable
10.Supports Windows XP/Server 2003/Vista/7 (32/64 bit)
